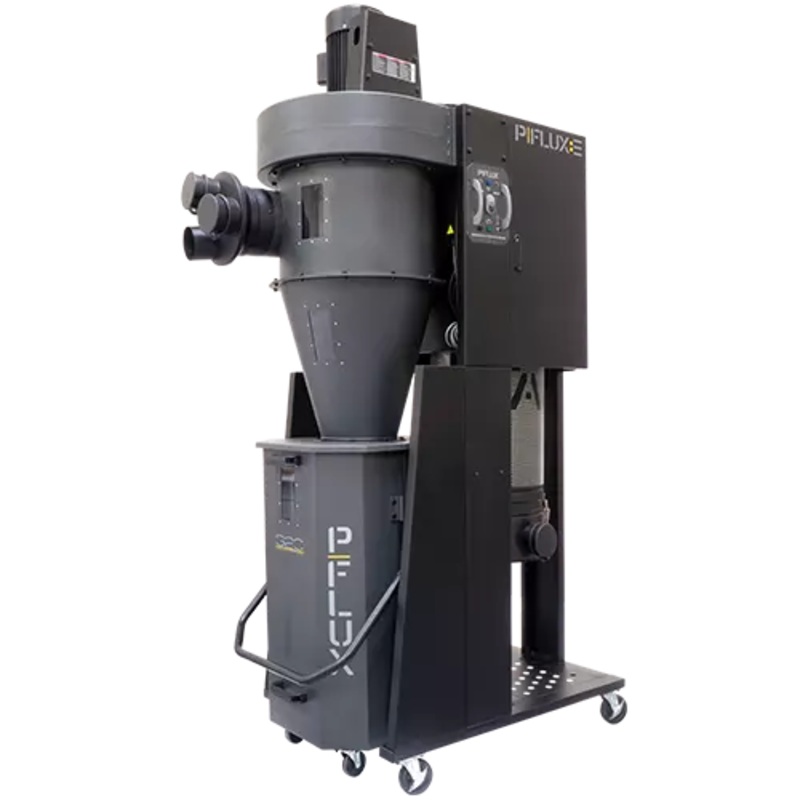

LAGUNA P|Flux: 3

The P|Flux series gets a host of exciting new upgrades including an auto-cleaning feature standard on all models in this line. The auto-clean conveniently activates every 10 minutes, or you can simply activate from the sleek redesigned remote. Overfilling the drum is a thing of the past, thanks to the super-sized 46-gallon octagonal drum (P|Flux 2 and 3), and a bright LED light illuminating the drum on all P|Flux models. Plus, LED and audio warning lets you know when the drum is full features that are now standard in this line.

Owner’s Manual

FEATURES:

• 3 HP Motor
• 2718 CFM Maximum Air Flow
• 46 Gallon Octagon Drum

Motor Specs:3HP

Electrical Specs:220V / 60Hz / 1PH / 3450 RPM

Running AMP:(8 Inlet) 22A at 220V;

Maximum Air Flow:2718 CFM (Cubic Feet Per Minute)

Shop Setting Air Flow*:1624 CFM

Max Static Pressure:11.2

Fan Size:15.5

Inlet:8 (8 x 4 x 3 Ports)

Auto Clean:10 min. Interval 10 Seconds F+R

Remote Control:High Frequency

Collection Capacity:46 Gallon Octagon Drum

Decibel Reading:76 dB (@9.8ft)

Assembled Dimensions (L x W x H):48 x 28 x 88

Packing Size (L x W x H):50 x 31.5 x 50.6 (127 x 80 x 128.5 cm)

Machine Weight:372 lbs. (169 kg)

Shipping Weight:441 lbs. (200 kg)

Filter Specs

Filtering Area:102 sq/ft (9.5 sq/m)

Cartridge Filter**:HEPA, 15.74 x 35.43 (40 x 90 cm) x 1pc

* Shop Setting Air Flow measured with hoses connected to inlet. See Performance tab for more details.

**The non-stick PTFE membrane has some disintegration after 200,000 cycles at the area where the cleaning paddles/arms touch the filter media. This does not largely affect the filtration efficiency. The HEPA filter media used on Laguna Cyclones are independently tested by an accredited 3rd party (TTRI). Designed with wide-spaced pleating to maintain optimum performance throughout filter lifespan.
