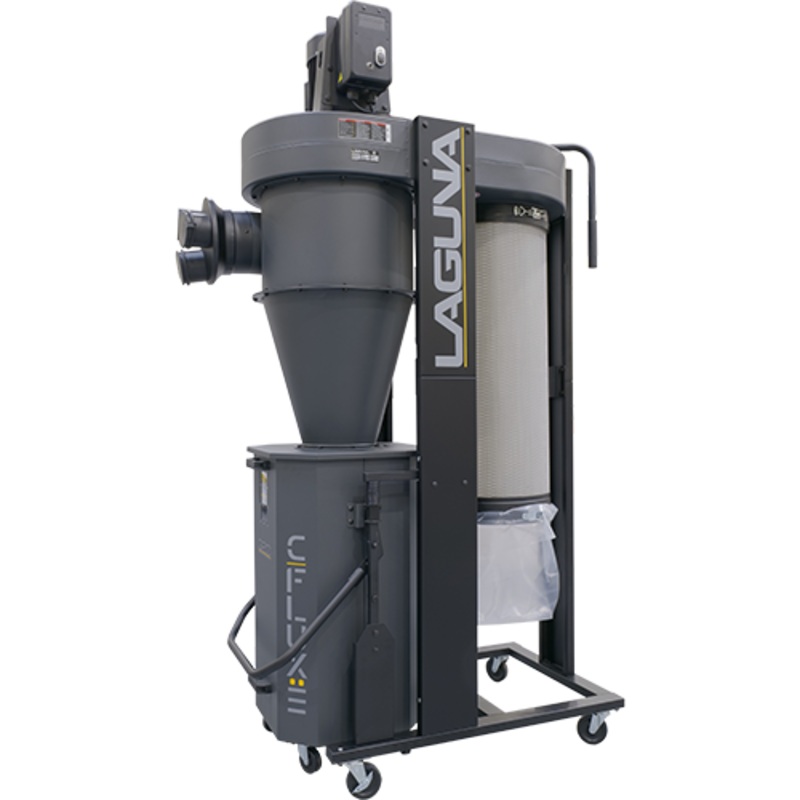

LAGUNA C|Flux: 3

For the popular C|Flux cyclone dust collectors, weve kept the user-friendly aspects of the previous generation while adding smart new features to improve the user experience. Among the upgrades is a dual-paddle filter cleaning design, and a max level indicator to increase filter longevity. The iconic octagonal drum grows to an impressive 46-gallon capacity on the C|Flux 2 and 3 models, and the newly redesigned 3-piece drum construction requires far fewer joints and fasteners cutting assembly time, while the locking casters provide additional stability.

Owner’s Manual

FEATURES:

• 3 HP Motor.
• 2718 CFM Maximum Air Flow.
• 46 Gallon Octagon Drum.

Motor Specs:3HP

Electrical Specs:220V / 60Hz / 1PH / 3450 RPM

Running AMP:(8 Inlet) 22A at 220V

Maximum Air Flow:2718 CFM (Cubic Feet Per Minute)

Shop Setting Air Flow*:1624 CFM

Max Static Pressure:11.2

Fan Size:15.5

Inlet:8 (8 x 4 X 3 Ports)

Remote Control:High Frequency

Collection Capacity:46 Gallon Octagon Drum

Decibel Reading:88 dB (@9.8ft)

Assembled Dimensions (L x W x H):48 x 28 x 88

Packing Size (L x W x H):50 x 31.5 x 50.6 (127 x 80 x 128.5 cm)

Machine Weight:373 lbs. (169 kg)

Shipping Weight:441 lbs. (200 kg)

Filter Specs

Filtering Area:102 sq/ft (9.5 sq/m)

Cartridge Filter:1 Micron, 15.74 x 35.43 (40 x 90 cm) x 1pc

* Shop Setting Air Flow measured with hoses connected to inlet. See Performance tab for more details.
