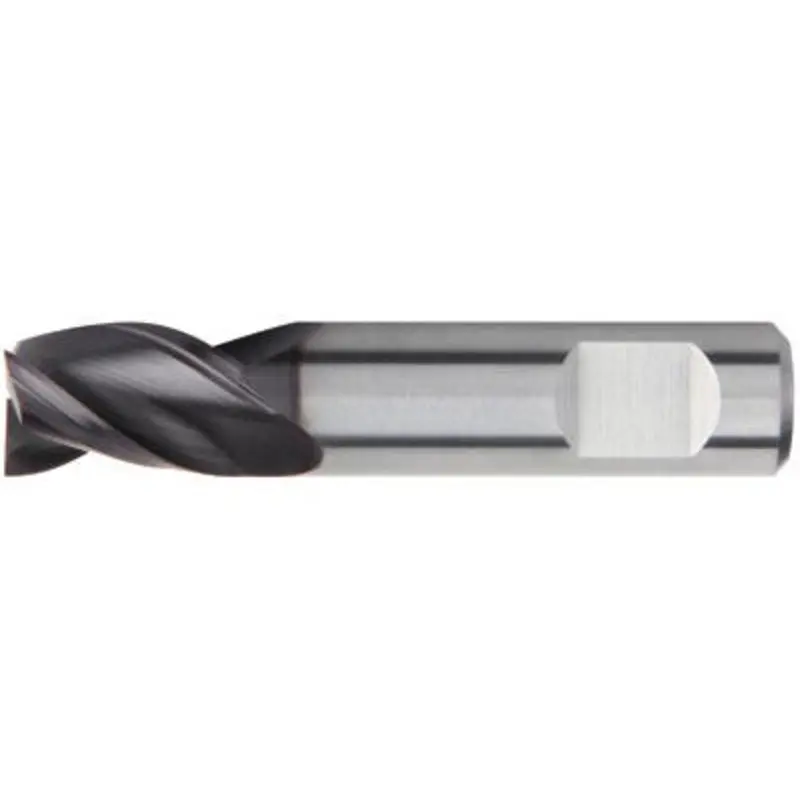

Kennametal 5mm KC643M GoMill 3 Flute Carbide End Mill

GOmill solid carbide end mill series provides extremely stable cutting conditions. Economic, short length-of-cut solid carbide end mills for roughing and finishing in multiple materials. Short overall length and a soft cutting geometry makes this line also a perfect fit for mill-turn machines and driven units in lathes. Works with any adapter, clamping sleeve in hydraulic chucks are recommended. Unequally spaced three- and four-flute versions minimize vibrations and provide high tool life and superior surface quality. Economic solution due to shorter-than-regular shanks, reducing overall tooling cost. Short length and high-performance geometry enable chatter-free, 1 x D full slot machining in multiple materials.

Brand :Kennametal

Manufacturer Part Number :4032794

Cutting Diameter (in) :0.1970

Cutting Diameter (mm) :5

Features & Benefits : Square end
Economic solid carbide end mill with short style shanks, saving expensive carbide
Not recommended for reconditioning
Extremely stable cutting conditions due to short design
Centre cutting for plunging and ramping operations
Unequal flute spacing for chatter-free machining at highest feed rates

Material :Solid Carbide

Number of Flutes :3

Coating/Finish :AlTiN

Grade :KC643M

Shank Type :Weldon

Flute Length (in) :0.3150

Flute Length (mm) :8

Diameter (mm) :5

Shank Diameter (mm) :6

Overall Length (mm) :38

Type :Square End
